Appliance field :
Deep Drawing 63 Ton 4 Column Hydraulic Press machine applies to plasticity material suppress technology , for instance:punching,bend,Flange thin stretch etc. may be also engaged in rectification ,press fitting, The suppress and shaping of Plastic products and powder Production
Characteristic:
Deep Drawing 63 Ton 4 Column Hydraulic Press machine ,Specially made large countertops according to customerneeds,differetonnageHydraulic control adopts to insert set valve integrated system, decrease let out Point , Movement reliability, durable and long life span ,It is constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time , The route of working pressure may be regulated in assigned scope ,adopt buttons for centralized control,Can realization manual,Semi-automatic,automatic 3 operate form.
Deep Drawing 63 Ton 4 Column Hydraulic Press machine Parameter:
| Model | 63t | 63t-K |
| Max.Liquid pressure (Mpa) | 25 | 25 |
| Slide Stroke (mm) | 400 | 400 |
| Max opening height (mm) | 700 | 700 |
| Working table size (mm) | 520x520 | 520x520 |
| Descent speed (mm/s) | 54 | 80 |
| Working speed (mm/s) | 15-24 | 15-22 |
| Return speed (mm/s) | 46 | 80 |
| Motor power (kw) | 5.5 | 5.5 |
| Displacement Oil Pump (mL/r) | 25 | 25 |
| Ejecting force (ton) | 20 | 20 |
| Ejecting stoke (mm) | 200 | 200 |

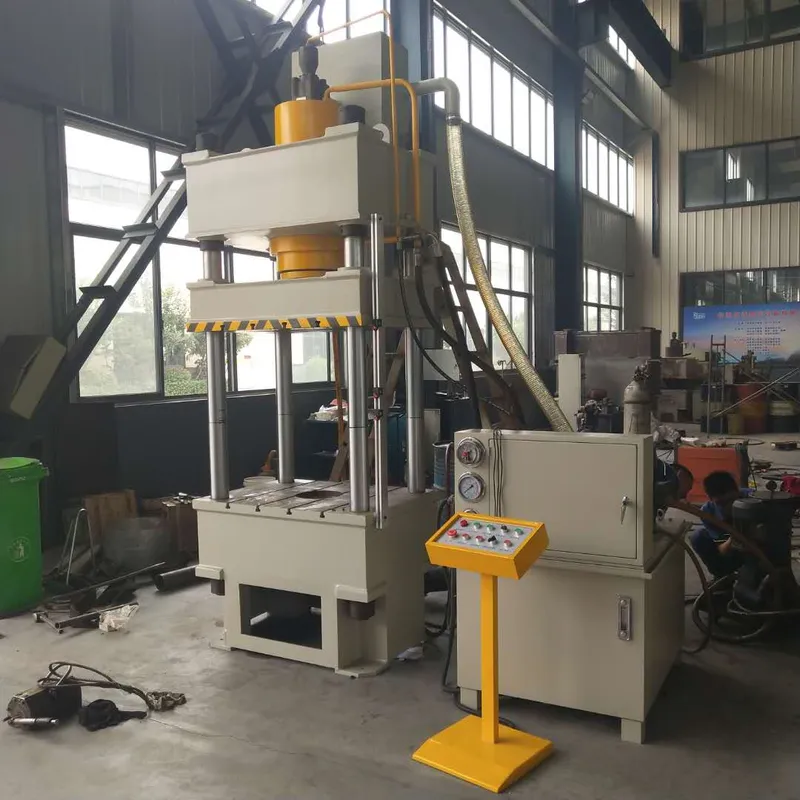

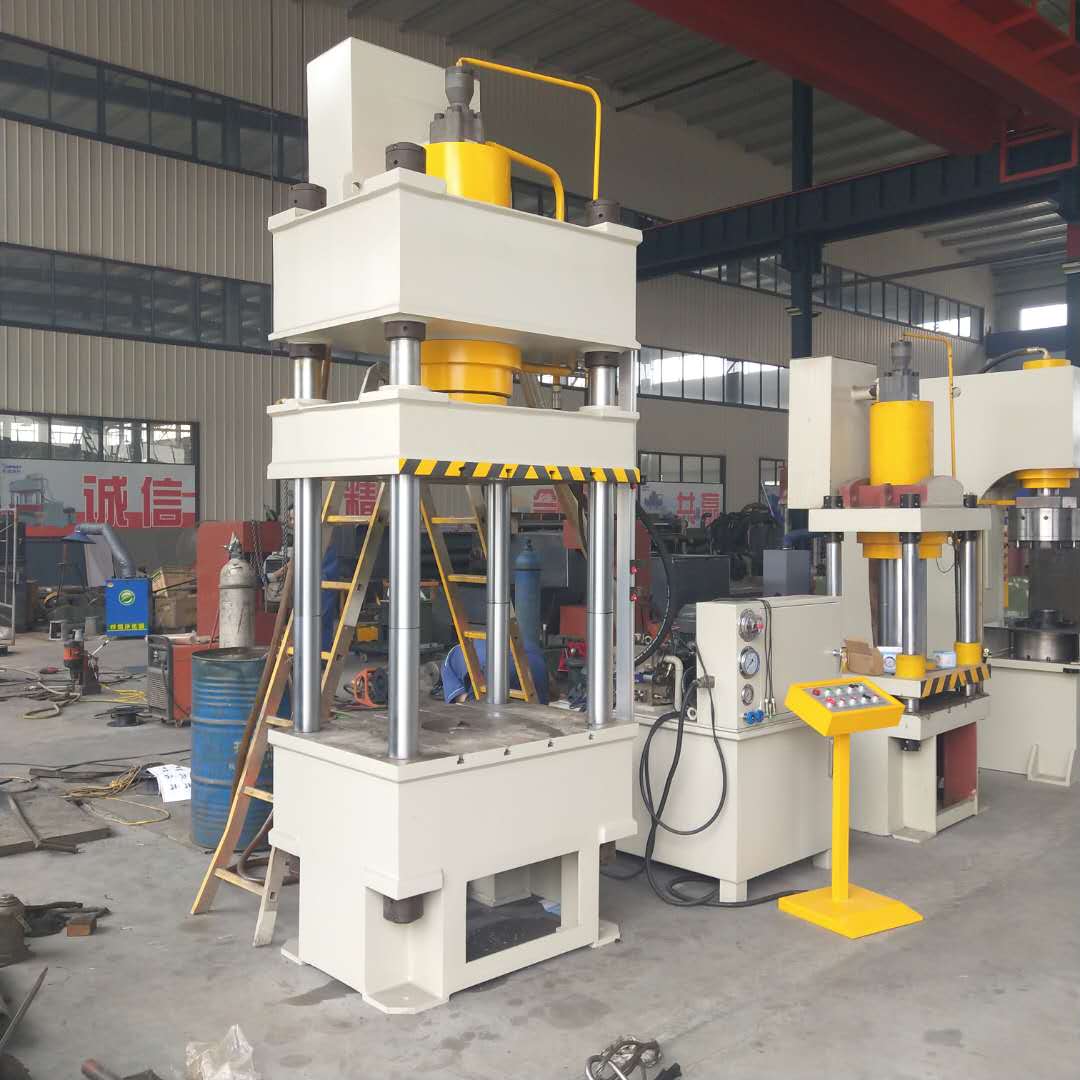

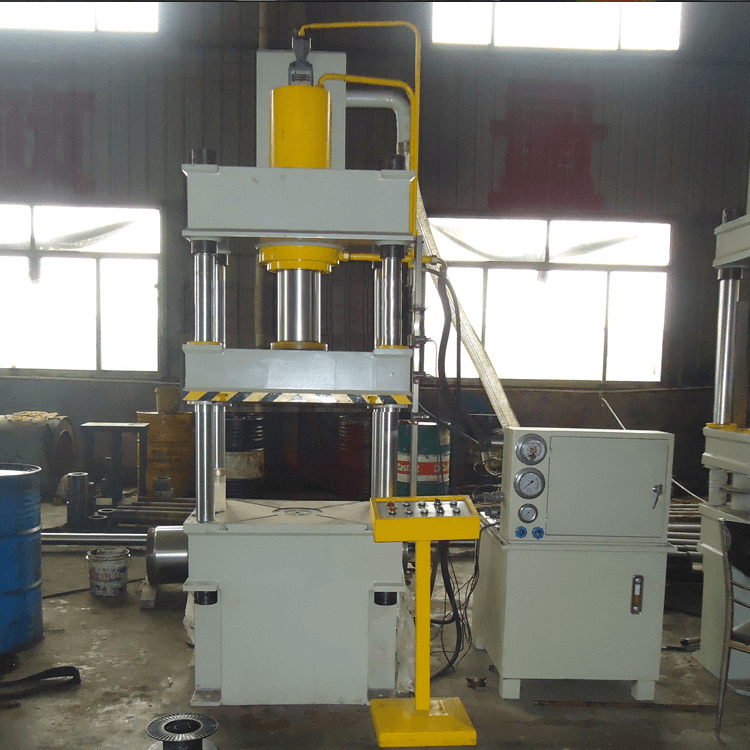

Detail Image:
Related Finished Products:
Package $ Shipping:
315 Ton Hydraulic Metal Deep Drawing Press Machine using the standard export packing to delivery .
